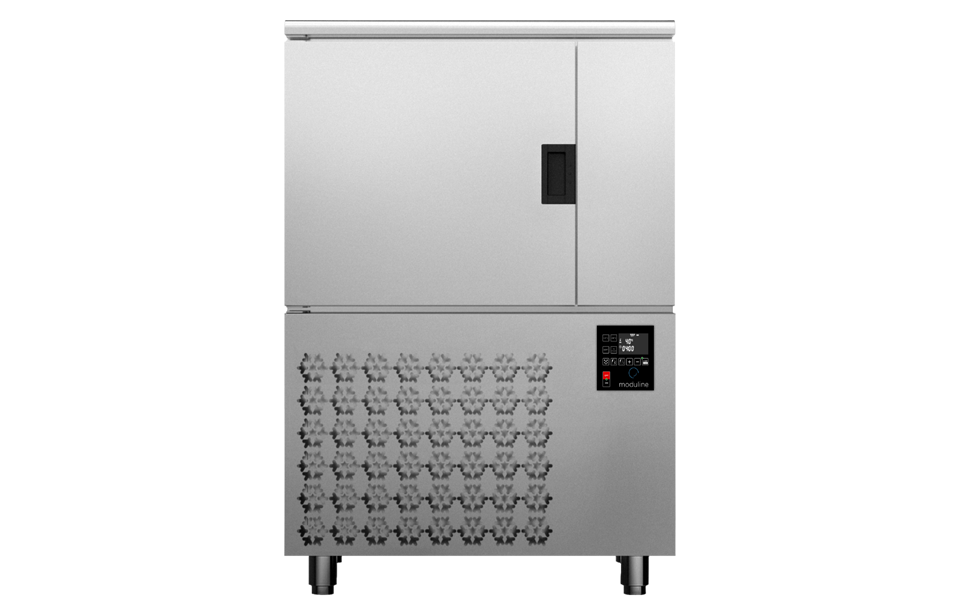

TBF092D

TBF092D

Capacity
Trays Capacity
6 (GN 2/1) h 65
9 (GN 2/1) h 40
12 (GN 2/1) h 20
Efficiency

From +90°C to +3°C and from +90°C to -18°C at the food core.


Refers to the product evenly distributed on the number of trays h 40.


54 kg
Technical Specifications
Control Panel

Heated Core Probe Included.


Electronic with digital display, keys and encoder knob
Operating
from -40°C to +0°C
Electric Power
3473 W
Refrigerating

Evaporation -10°C, condensation +55°C (ASHRAE standard).


4581 W
Refrigerant
R-404A
Energy Class
N
Electric Supply
400 Vac 3N 50 Hz
Dimensions
Cavity
W x D x H
540x730x590 mm
Overall
W x D x H
980x850x1440 mm
Net Weight
0 kg
Packaging
Overall
W x D x H
0x0x0 mm
Gross Weight
0 kg
Volume
0 m3
Remarks

Contact the factory for special voltages.


Refer to the instruction manual for a proper use.


Moduline Srl reserves the right to make technical changes without notice. Therefore, specifications in this website are not binding.
