Regeneration according to Moduline

as freshly cooked

The Retherma line is the flagship of the Moduline offer.

In 20 anni l’azienda ha sviluppato, infatti, per tutte le esigenze, una gamma di rigeneratori che comprendente 43 modelli dotati di 3 diversi tipi di controllo. La loro capacità di carico può variare da 4 GN 2/3 a 40 GN 1/1, per la rigenerazione in teglia, e da 12 a 126 piatti, per la rigenerazione dei “menus à la carte” per cerimonie ed eventi.

Grazie alla qualità e alla delicatezza del suo processo di rimessa in temperatura, che preserva perfettamente le caratteristiche organolettiche dei cibi, Retherm permette di servire i piatti preparati in anticipo come se fossero stati appena cotti: con un aspetto, una consistenza, un profumo e un sapore che fanno veramente la differenza.

Inoltre, la rigenerazione può essere compiuta con qualsiasi contenitore, per ogni applicazione e per ogni tipo di pubblico, da un minimo di 20 ad un massimo di 500 persone per ciclo.

La sofisticata tecnologia e gli accorgimenti costruttivi tipici di Moduline assicurano consumi ridotti, semplicità d’impiego, completa sicurezza e facile pulizia. Retherma risolve così, in cucina, tutti i problemi di stoccaggio, d’igiene, di disponibilità e di salvaguardia dei prodotti.

Infine, la perfetta calibratura della ventilazione e dell’umidità all’interno della camera, che sono regolabili in funzione dei prodotti da rigenerare, garantisce risultati ben al di sopra delle aspettative.

Version E-EW

GRE060E

6 GN2/3
Product capacity 10kg
Electric power 3450W

GRE060EW

6 GN2/3
Product capacity 10kg
Electric power 3600W

GRE061E

6 GN1/1
Product capacity 15kg
Electric power 3450W

GRE061EW

6 GN1/1
Product capacity 15kg
Electric power 3600W

GRE106E

6 GN1/1
Product capacity 15kg
Electric power 3450W

GRE106EW

6 GN1/1
Product capacity 15kg
Electric power 3600W

Version D-DW

GRE060D

6 GN2/3
Product capacity 10 kg
Electric power 3450W

GRE060DW

6 GN2/3
Product capacity 10 kg
Electric power 3600W

GRE061D

6 GN1/1
Product capacity 15 kg
Electric power 3450W

GRE061DW

6 GN1/1
Product capacity 15 kg
Electric power 3600W

GRE106D

6 GN1/1
Product capacity 15 kg
Electric power 3450W

GRE106DW

6 GN1/1
Product capacity 15 kg
Electric power 3600W

Version C

GRE060C

6 GN2/3
Product capacity 10 kg
Electric power 3450W

GRE061C

6 GN1/1
Product capacity 15 kg
Electric power 3450W

GRE106C

6 GN1/1
Product capacity 15 kg
Electric power 3450W

Version C

RRS040C

4 GN2/3
Product capacity 9.6kg
Electric power 3450W

RRS060C

6 GN2/3
Product capacity 14.5 kg
Electric power 3450W

RRS071C

7 GN1/1
Product capacity 25kg
Electric power 6300W

RRS090C

9 GN2/3
Product capacity 21.5kg
Electric power 6800W

RRS101C

10 GN1/1
Product capacity 36kg
Electric power 12500W

RRS102C

10 GN2/1
Product capacity 72kg
Electric power 15500W

RRS122C

12 GN2/1
Product capacity 85.5kg
Electric power 15500W

Version E

RRO051E

5 GN1/1
Tray runners pitch 90mm
Electric power 6300W

RRO061E

6 GN1/1
Tray runners pitch 75mm
Electric power 6300W

RRO081E

8 GN1/1
Tray runners pitch 90mm
Electric power 12500W

RRO101E

10 GN1/1
Tray runners pitch 75mm
Electric power 12500W

RRO111E

11 GN1/1
Tray runners pitch 90mm
Electric power 15500W

RRO141E

14 GN1/1
Tray runners pitch 75mm
Electric power 15500W

RRO062E

6 GN2/1
Tray runners pitch 90mm
Electric power 12500W

RRO072E

7 GN2/1
Tray runners pitch 75mm
Electric power 12500W

RRO082E

8 GN2/1
Tray runners pitch 90mm
Electric power 15500W

RRO102E

10 GN2/1
Tray runners pitch 75mm
Electric power 15500W

RRO112E

12 GN2/1
Tray runners pitch 90mm
Electric power 23200W

RRO142E

14 GN2/1
Tray runners pitch 75mm
Electric power 23200W

Version D

RRO051D

5 GN1/1
Tray runners pitch 90mm
Electric power 6300W

RRO061D

6 GN1/1
Tray runners pitch 75mm
Electric power 6300W

RRO081D

8 GN1/1
Tray runners pitch 90mm
Electric power 12500W

RRO101D

10 GN1/1
Tray runners pitch 75mm
Electric power 12500W

RRO111D

11 GN1/1
Tray runners pitch 90mm
Electric power 15500W

RRO141D

14 GN1/1
Tray runners pitch 75mm
Electric power 15500W

RRO062D

6 GN2/1
Tray runners pitch 90mm
Electric power 12500W

RRO072D

7 GN2/1
Tray runners pitch 75mm
Electric power 12500W

RRO082D

8 GN2/1
Tray runners pitch 90mm
Electric power 15500W

RRO102D

10 GN2/1
Tray runners pitch 75mm
Electric power 15500W

RRO112D

12 GN2/1
Tray runners pitch 90mm
Electric power 23200W

RRO142D

14 GN2/1
Tray runners pitch 75mm
Electric power 23200W

Version C

RRO051C

5 GN1/1
Tray runners pitch 90mm
Electric power 6300W

RRO061C

6 GN1/1
Tray runners pitch 75mm
Electric power 6300W

RRO081C

8 GN1/1
Tray runners pitch 90mm
Electric power 12500W

RRO101C

10 GN1/1
Tray runners pitch 75mm
Electric power 12500W

RRO111C

11 GN1/1
Tray runners pitch 90mm
Electric power 15500W

RRO141C

14 GN1/1
Tray runners pitch 75mm
Electric power 15500W

RRO062C

6 GN2/1
Tray runners pitch 90mm
Electric power 12500W

RRO072C

7 GN2/1
Tray runners pitch 75mm
Electric power 12500W

RRO082C

8 GN2/1
Tray runners pitch 90mm
Electric power 15500W

RRO102C

10 GN2/1
Tray runners pitch 75mm
Electric power 15500W

RRO112C

12 GN2/1
Tray runners pitch 90mm
Electric power 23200W

RRO142C

14 GN2/1
Tray runners pitch 75mm
Electric power 23200W

Version E

RRT051E

5 GN1/1
Tray runners pitch 93 mm
Electric power 3450W

RRT061E

6 GN1/1
Tray runners 78mm
Electric power 3450W

RRT081E

8 GN1/1
Tray runners pitch 96mm
Electric power 6800W

RRT101E

10 GN1/1
Tray runners pitch 76mm
Electric power 6800W

RRT161E

16 GN1/1
Tray runners pitch 72 mm
Electric power 6800W

RRT112E

10 GN2/1 - 20 GN 1/1
Tray runners pitch 76mm
Electric power 6800W

RRT153E

16 GN2/1 - 32 GN1/1
Tray runners pitch 72 mm
Electric power 10150W

RRT162E

16 GN2/1
Tray runners pitch 79 mm
Electric power 10150W

Version D

RRT051D

5 GN1/1
Tray runners pitch 93 mm
Electric power 3450W

RRT061D

6 GN1/1
Tray runners 78mm
Electric power 3450W

RRT081D

8 GN1/1
Tray runners pitch 96mm
Electric power 6800W

RRT101D

10 GN1/1
Tray runners pitch 76mm
Electric power 6800W

RRT161D

16 GN1/1
Tray runners pitch 72 mm
Electric power 6800W

RRT112D

10 GN2/1 - 20 GN 1/1
Tray runners pitch 76mm
Electric power 6800W

RRT153D

16 GN2/1 - 32 GN1/1
Tray runners pitch 72 mm
Electric power 10150W

RRT162D

16 GN2/1
Tray runners pitch 79 mm
Electric power 10150W

Version C

RRT051C

5 GN1/1
Tray runners pitch 93 mm
Electric power 3450W

RRT061C

6 GN1/1
Tray runners 78mm
Electric power 3450W

RRT081C

8 GN1/1
Tray runners pitch 96mm
Electric power 6800W

RRT101C

10 GN1/1
Tray runners pitch 76mm
Electric power 6800W

RRT161C

16 GN1/1
Tray runners pitch 72 mm
Electric power 6800W

RRT112C

10 GN2/1 - 20 GN 1/1
Tray runners pitch 76mm
Electric power 6800W

RRT153C

16 GN2/1 - 32 GN1/1
Tray runners pitch 72 mm
Electric power 10150W

RRT162C

16 GN2/1
Tray runners pitch 79 mm
Electric power 10150W

Version E

RRD051E

5 GN1/1
Product capacity 18kg Electric power 3450W

RRD061E

6 GN1/1
Product capacity 22kg
Electric power 3450W

RRD081E

8 GN1/1
Product capacity 29kg
Electric power 6800W

RRD101E

10 GN1/1
Product capacity 37kg
Electric power 6800W

RRD153E

16 GN2/1 - 32 GN1/1
Product capacity 115kg
Electric power 10150W

RRFF20E

20 GN1/1
Product capacity 72kg
Electric power 12500W

RRFF22E

20 GN1/1
Product capacity 72kg
Electric power 12500W

RRFT20E

20 GN1/1
Product capacity 72kg
Electric power 12500W

RRFT22E

20 GN1/1
Product capacity 72kg
Electric power 12500W

RRFF40E

40 GN1/1 - 20 GN2/1 Product capacity 144 kg
Electric power 23200W

RRFF42E

40 GN1/1 - 20 GN2/1 Product capacity 144 kg
Electric power 23200W

RRFC20E

20 GN1/1
Product capacity 72kg
Electric power 12500W

RRFC40E

40 GN1/1 - 20 GN2/1
Product capacity 144kg
Electric power 23200W

Retherma

a reliable and versatile ally

  • MultiLevel. Con questo sistema, Retherma è in grado di gestire livelli diversi con differenti tempi di rigenerazione, indicando, di volta in volta, quale preparazione è terminata. (solo su versione E, fino a capacità di carico di 10 GN 1/1. No GN 2/1).
  • IdealWarm: The intelligent temperature reduction in the cavity at the end of the cooking cycle allows food to be kept perfect at all times, avoiding the risk of spoiling the dishes. (Only available on the D and E versions).
  • ClimaChef: The electronic and automatic climate control system in the cooking cavity allows perfect consistency of food, keeping it always tasty and crispy, safely and intelligently. (Optional; standard in D and E versions of GRE models and in the RRFF and RRFC models).
  • Self-diagnosis: The correct functioning of all electrical components is checked automatically. (Only available on the E version).
  • The automatic motor fan stop intervenes when the door is opened.
  • The humidifier is calibrated to minimise water consumption.
  • Fans with periodic and automatic reversal of their rotation allow perfect uniformity of temperatures in the cavity.
  • The tray racks are easily removable and washable.
  • The watertight cavity with rounded corners and an integrated drainage system makes cleaning easy and safe.
  • The insulation of cavity and door involves the use of highly insulated materials that minimise heat loss.

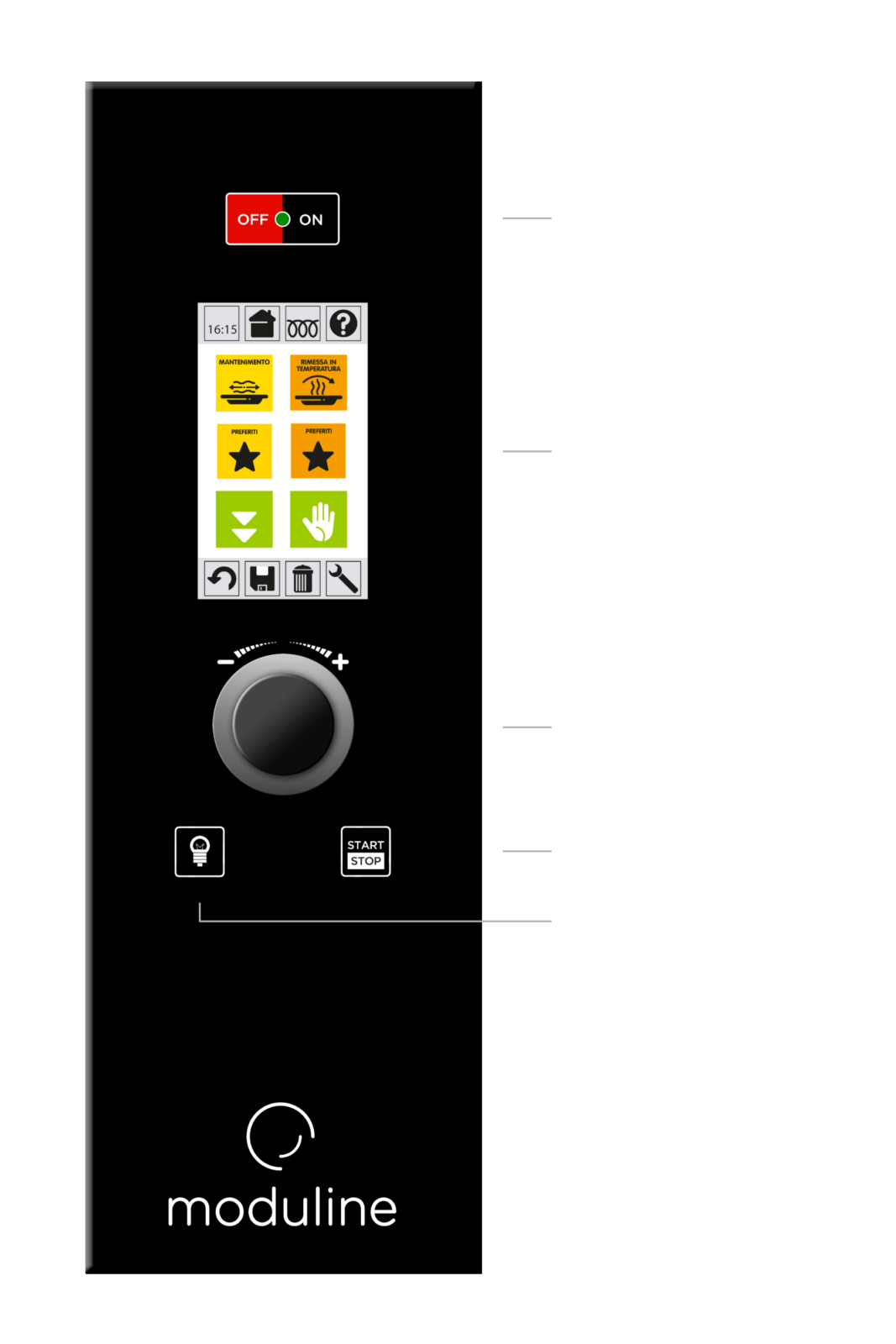

Control Panel Version

(gre, rro, Rrt)

C

Control Panel Version

C

(gre, rro, Rrt)

1. ON/OFF button

2. Encoder knob to navigate between oven functions and set all regeneration parameters

3. START/STOP button

4. 4.3″ LCD touch-screen display

5. Cavity light button

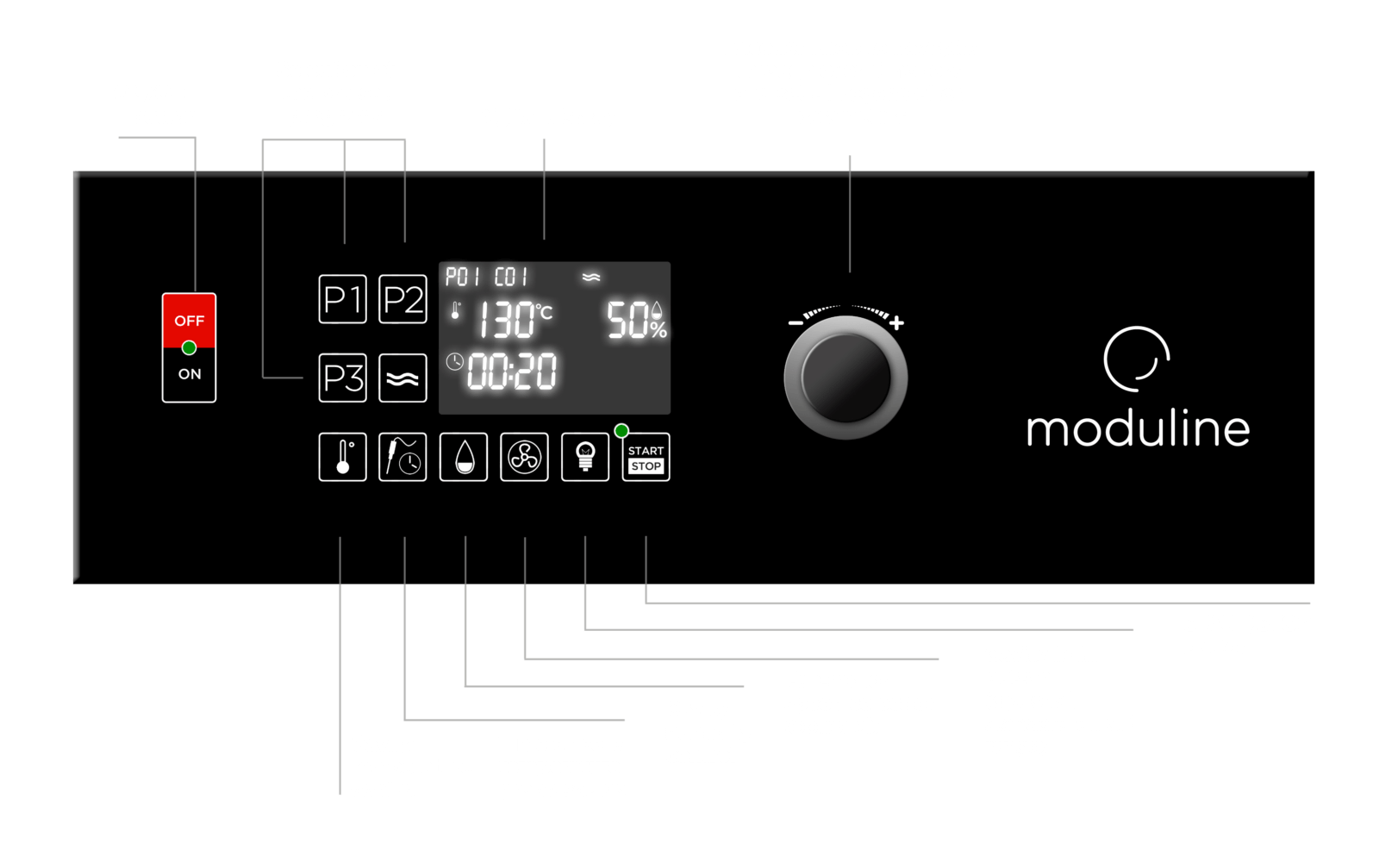

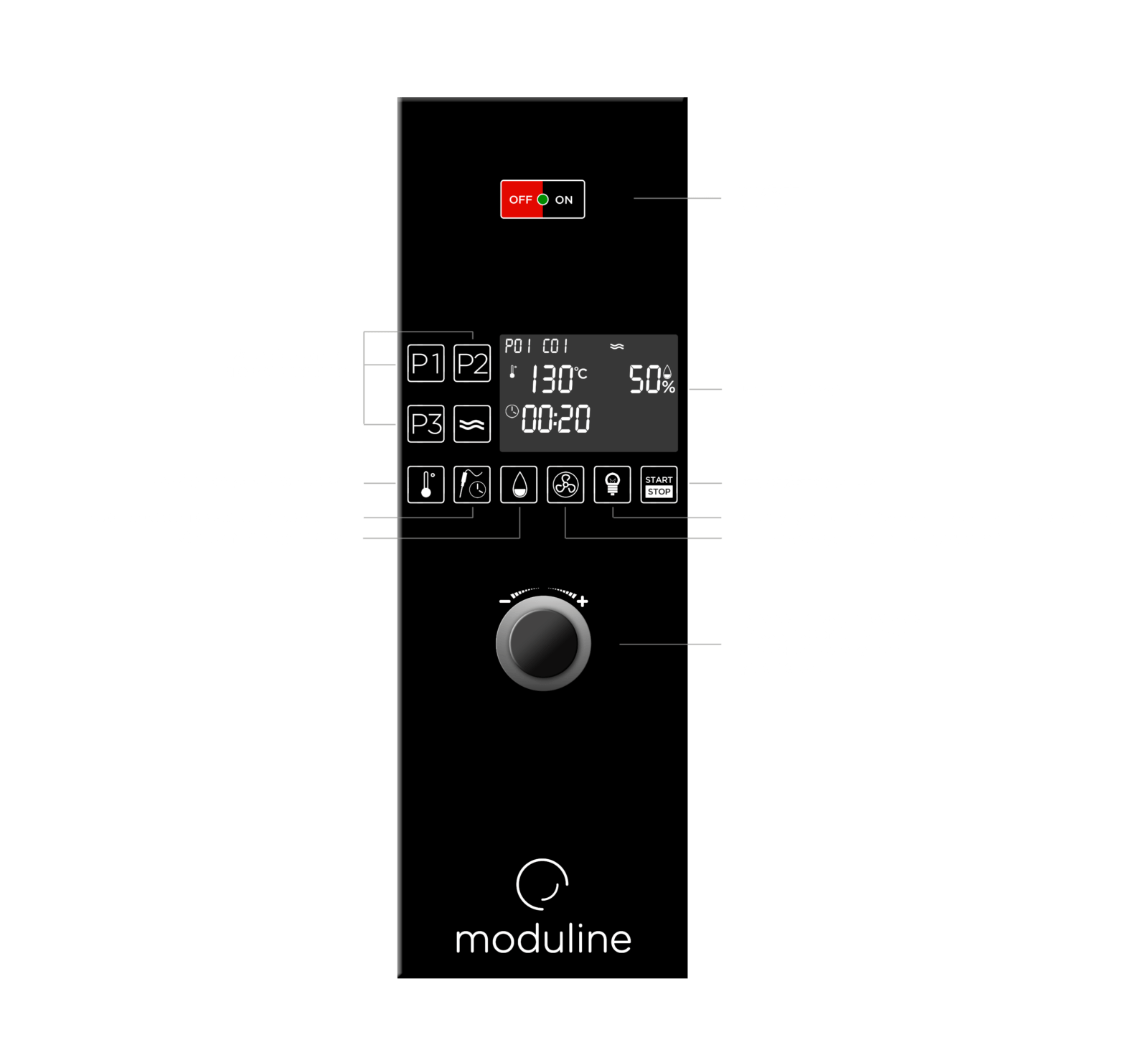

D

Control Panel Version

(gre, rro, Rrt)

Control Panel Version

D

(gre, rro, Rrt)

1. ON/OFF button

2. Selection of pre-set programmes

3. Digital display

4. Encoder knob to navigate between oven functions and set all regeneration parameters

5. Cavity temperature control

6. Time or core probe control

7. Cavity humidity control

8. Fan speed management (optional)

9. Cavity light button (optional, standard on GRE range)

10. START/STOP button

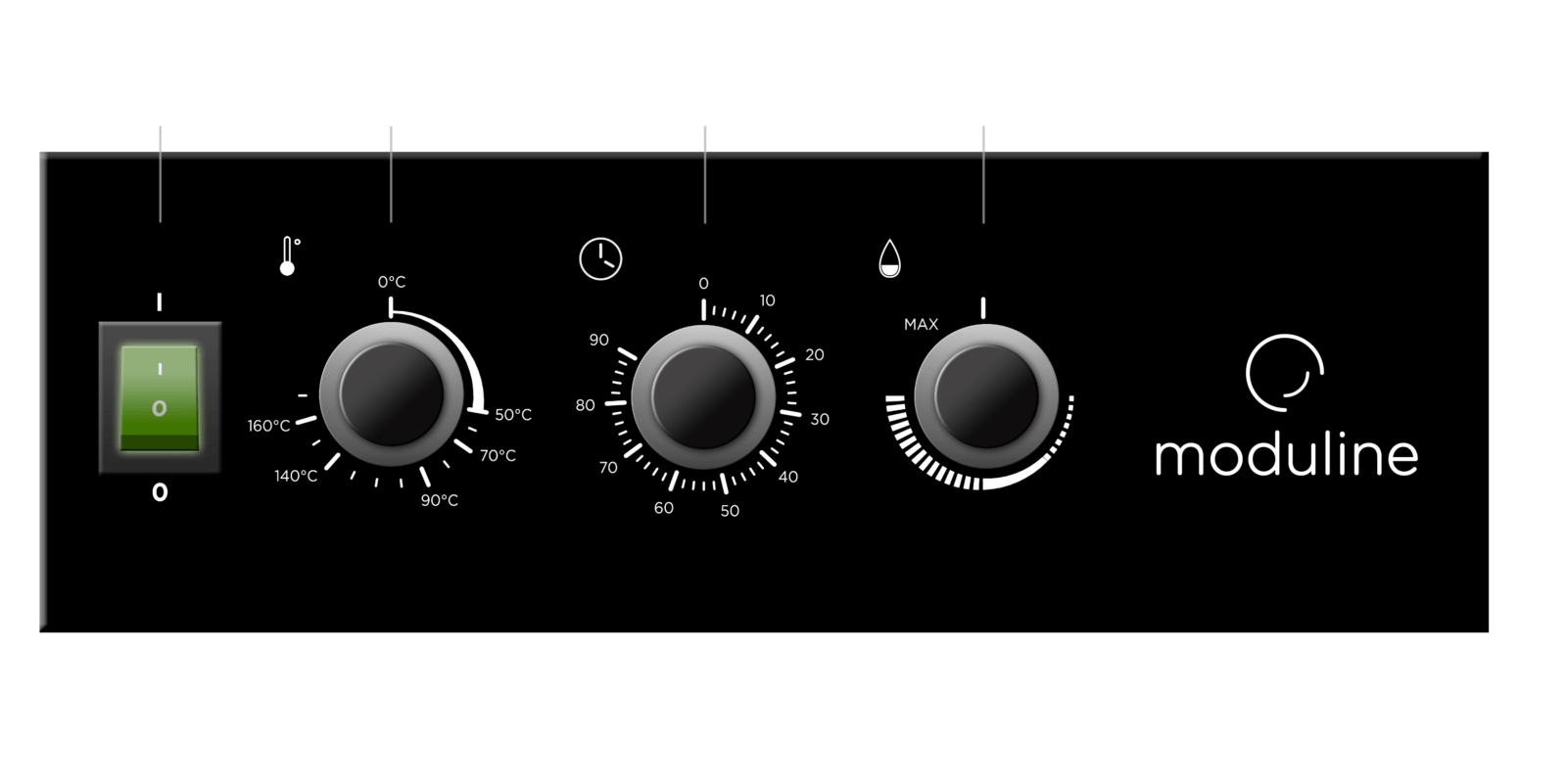

E

Control Panel Version

(gre, rro, Rrt, RRD, RRFF, RRFT, RRFC)

Control Panel Version

E

(gre, rro, Rrt, RRD, RRFF, RRFT, RRFC)

1. ON/OFF button

2. Room temperature control knob

3. Time setting knob

4. Cavity humidity control knob

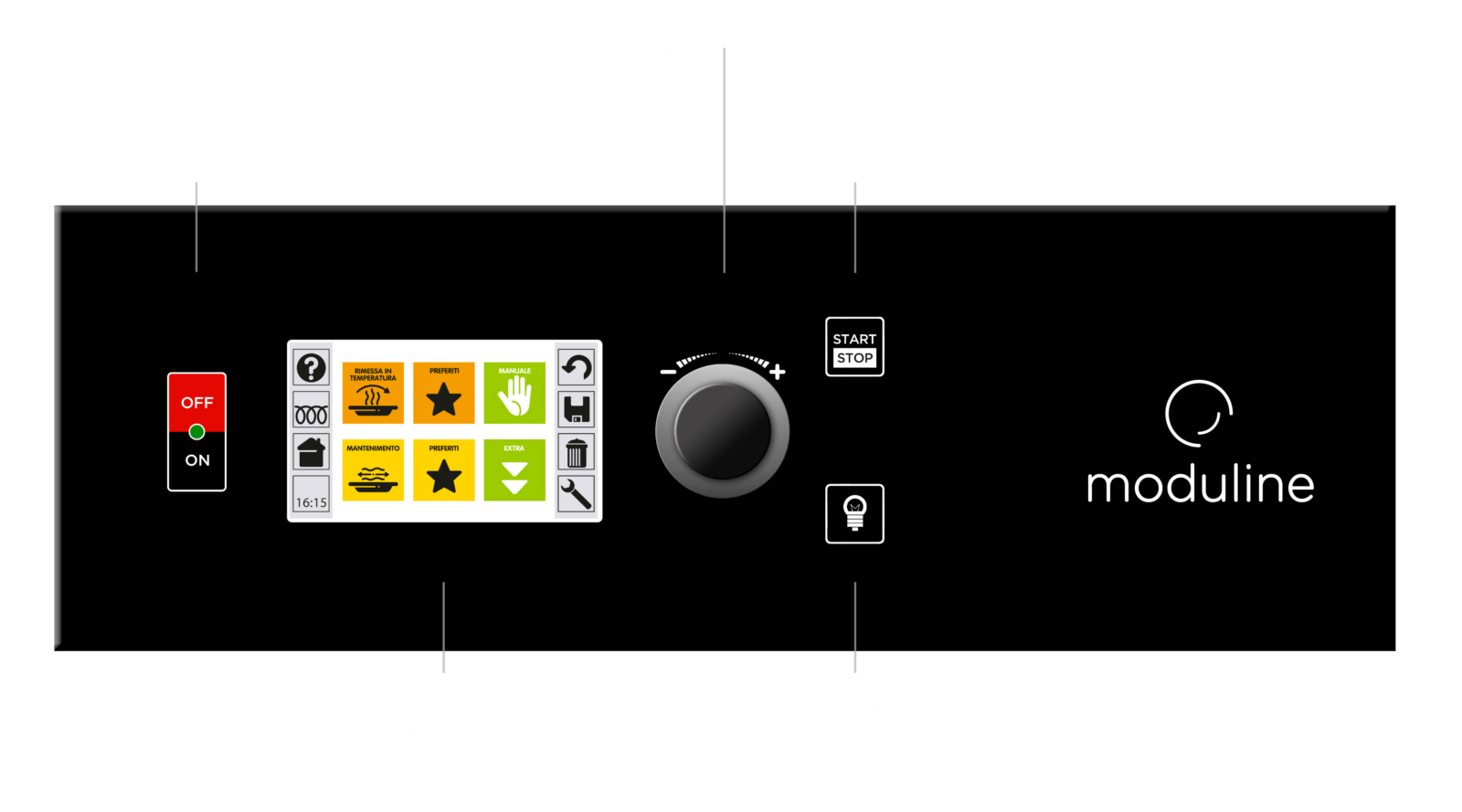

C

Control Panel Version

(rrs)

C

Control Panel Version

(rrs)

1. ON/OFF button

2. 4.3″ LCD touch-screen display

3. Encoder knob to navigate between oven functions and set all regeneration parameters

4. START/STOP button

5. Cavity light button

E

Control Panel Version

(rrs)

E

Control Panel Version

(rrs)

1. ON/OFF button

2. Digital display

3. START/STOP button

4. Cavity light button (optional, standard on GRE range)

5. Fan speed management (optional)

6. Encoder knob to navigate between oven functions and set all regeneration parameters

7. Selection of pre-set programmes

8. Cavity temperature control

9. Time or core probe control

10. Cavity humidity control

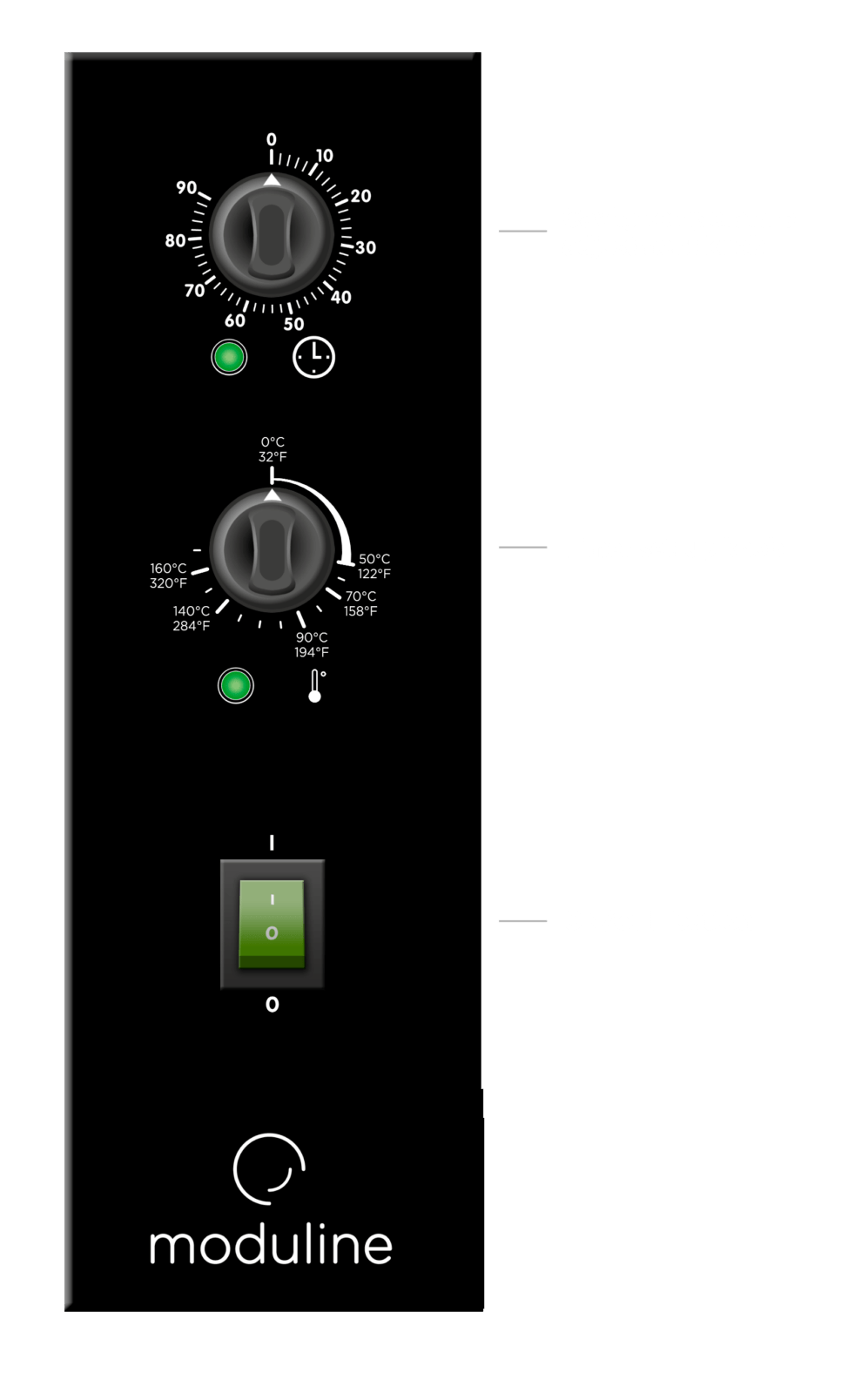

E

Control Panel Version

X

Control Panel Version

E

X

1. Cavity temperature control knob

2. Time setting knob

3. ON/OFF button

FEATURES

Functioning modes

Retherma caratteristiche
Retherma caratteristiche

The temperature is adjustable from +30°C to +160°C on the GRE-RRO-RRT-RRFF-RRFT models.

The temperature is adjustable from +0°C to +160°C on RRD-RRFC models.

The manual regeneration cycle procedure offers all the traditional convenience to the chef's work (on all versions).

The electronic control is very intuitive and easy to use even by less experienced staff (D and E version).

Recipes can be always customised and easy to navigate (E version only).

The automatic regeneration programs divided into 4 product categories are the perfect starting point for your experience with a retherma regenerator (e version only).

La sezione dei programmi preferiti permette allo chef di riutilizzare automaticamente le ricette già impostate (solo su versione E).

The reheating programmes can be divided into 9 different steps, allowing high precision in food regeneration (E version only).

EXTRAS

Door locking system with key

It prevents the risk of unintentional opening during cooking, which would interrupt delicate cycles and compromise the required result (optional on all GRE models).

Core probe

Removable and interchangeable, it is available in different diameters and with different measuring points; the ergonomic handle allows precise insertion at the core of the product at all times, making the probe very easy to use (optional only on D and E version, standard on RRFF, RRFT, RRFC range).

Cavity configuration can be customised

According to your requirements, when ordering, for GN or 600×400 trays.

(GRE061,RRO051/61/81/101/11/141, RRT051/61/81/101/161)

Cooking cavity lighting

available in combination with glass door (optional on RRO-RRT models, standard on GRE models).

Simplified software

For repetitive work cycles and to facilitate the user interface for less trained operators, Moduline offers a simplified software that allows the operator to start a pre-set programme with the simple sequence of 2 buttons. The software is installed in the factory, in place of the complete software. Technical support menu remains available (only on E control panel).

Water tank integrated in the machine

This tank (optional) allows the free installation of regenerators from the GRE range (with front drawer and 2-litre capacity); regenerators from the RRO range with 3-litre tank and regenerators from the RRFF, RRFT and RRFC range with 5-litre tank. Standard on the RRT range.

USB port

Software, recipe book and HACCP data can be transfered or downloaded via USB port (optional on D and E version, standard on RRFF, RRFT, RRFC range). The HACCP system will save all regeneration parameters managed by the equipment for 30 days (if machine is provided with USB port).

Quenching System

This is meant for built-in installation, where full condensation of the upper smoke outlet is required (available on the GRE range with E control).

PadLock

The keypad lock system with password guarantees the chef maximum data protection or unintentional interruption of the cooking programme (D and T version).

ProTime

The ProTime system allows you to set the date and time when you want the oven to preheat or start a cooking programme (D and T version).

Corecheck

The core probe controls the progress of the desired core temperature. Up to 30 different core temperatures can be recorded at the end of the process and saved in the HACCP report (only on GRE-RRO-RRT-RRFF-RRFT-RRD-RRFC models).

Ecowash

The Ecowash washing system automatically washes the cooking cavity with 4 different programs, using single-dose tablet detergents (standard in the GRE range, DW, and on EW models).

GRE060E

Plates capacity

6ø 200-320

Trays capacity

6 GN2/3

Product capacity

10 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x675x822 h

Weight

65 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

GRE060E

GRE060EW

Version

+ Ecowash

Plates capacity

6ø 200-320

Trays capacity

6 GN2/3

Product capacity

10 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x675x822 h

Weight

65 Kg

Electric power

3600W

Power supply

AC 220-240V 50/60Hz

GRE060E

GRE061E

Plates capacity

12ø 200-260 – 6ø 270-320

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x822 h

Weight

90 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

GRE061E

GRE061EW

Version

+ Ecowash

Plates capacity

12ø 200-260 – 6ø 270-320

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x822 h

Weight

90 Kg

Electric power

3600W

Power supply

AC 220-240V 50/60Hz

GRE061E

GRE106E

Plates capacity

12ø 200-260 – 6ø 270-320

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x822 h

Weight

90 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

GRE106EW

Version

+ Ecowash

Plates capacity

12ø 200-260 – 6ø 270-320

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x822 h

Weight

90 Kg

Electric power

3600W

Power supply

AC 220-240V 50/60Hz

GRE060D

Plates capacity

6ø 200-320

Trays capacity

6 GN2/3

Product capacity

10 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x675x822 h

Weight

65 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

GRE060D

GRE060DW

Version

+ Ecowash

Plates capacity

6ø 200-320

Trays capacity

6 GN2/3

Product capacity

10 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x675x822 h

Weight

65 Kg

Electric power

3600W

Power supply

AC 220-240V 50/60Hz

GRE060D

GRE061D

Plates capacity

12ø 200-260 – 6ø 270-320

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x822 h

Weight

90 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

GRE061D

GRE061DW

Version

+ Ecowash

Plates capacity

12ø 200-260 – 6ø 270-320

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x822 h

Weight

90 Kg

Electric power

3600W

Power supply

AC 220-240V 50/60Hz

GRE061D

GRE106D

Plates capacity

12ø 200-260 – 6ø 270-320

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x822 h

Weight

90 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

GRE106D

GRE106DW

Version

+ Ecowash

Plates capacity

12ø 200-260 – 6ø 270-320

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x822 h

Weight

90 Kg

Electric power

3600W

Power supply

AC 220-240V 50/60Hz

GRE106D

GRE060C

Plates capacity

6ø 200-320

Trays capacity

6 GN2/3

Product capacity

10 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x675x822 h

Weight

65 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

GRE060C

GRE061C

Plates capacity

12ø 200-260 – 6ø 270-320

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x822 h

Weight

90 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

GRE106C

Plates capacity

12ø 200-260 – 6ø 270-320

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x822 h

Weight

90 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

GRE106C

RRS040C

Plates capacity

4ø 200-320

Trays capacity

4 GN2/3

Product capacity

9.6 Kg

Tray Runners Pitch

95 mm

Dimensions mm

650x650x575 h

Weight

43 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

RRS060C

Plates capacity

6ø 200-320

Trays capacity

6 GN2/3

Product capacity

14.5 Kg

Tray Runners Pitch

75 mm

Dimensions mm

650x650x650 h

Weight

45 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

RRS071C

Plates capacity

14ø 200-320

Trays capacity

7 GN1/1

Product capacity

25 Kg

Tray Runners Pitch

75 mm

Dimensions mm

825x680x725 h

Weight

54 Kg

Electric power

6300W

Power supply

AC 380-415V 3N 50/60Hz

RRS090C

Plates capacity

9ø 200-320

Trays capacity

9 GN2/3

Product capacity

21.5 Kg

Tray Runners Pitch

75 mm

Dimensions mm

650x650x875 h

Weight

59 Kg

Electric power

6800W

Power supply

AC 380-415V 3N 50/60Hz

RRS101C

Plates capacity

20ø 200-260 – 10ø 270-320

Trays capacity

10 GN1/1

Product capacity

36 Kg

Tray Runners Pitch

75 mm

Dimensions mm

825x680x950 h

Weight

70 Kg

Electric power

12500W

Power supply

AC 380-415V 3N 50/60Hz

RRS102C

Plates capacity

40ø 200-260 – 20ø 270-320

Trays capacity

10 GN1/1

Product capacity

72 Kg

Tray Runners Pitch

75 mm

Dimensions mm

945x885x950 h

Weight

90 Kg

Electric power

15500W

Power supply

AC 380-415V 3N 50/60Hz

RRS122C

Plates capacity

48ø 200-260 – 24ø 270-320

Trays capacity

12 GN2/1

Product capacity

85.5 Kg

Tray Runners Pitch

75 mm

Dimensions mm

945x885x1100 h

Weight

105 kg

Electric power

15500W

Power supply

AC 380-415V 3N 50/60Hz

RRO051E

Trays capacity

5 GN1/1

Tray Runners Pitch

90 mm

Dimensions mm

800x760x855 h

Weight

67 Kg

Electric power

6300W

Power supply

AC 380-415V 3N 50/60Hz

RRO061E

Trays capacity

6 GN1/1

Tray Runners Pitch

75 mm

Dimensions mm

800x760x855 h

Weight

67 Kg

Electric power

6300W

Power supply

AC 380-415V 3N 50/60Hz

RRO081E

Trays capacity

8 GN1/1

Tray Runners Pitch

90 mm

Dimensions mm

800x760x1155 h

Weight

90 Kg

Electric power

12500W

Power supply

AC 380-415V 3N 50/60Hz

RRO101E

Trays capacity

10 GN1/1

Tray Runners Pitch

75 mm

Dimensions mm

800x760x1155 h

Weight

90 Kg

Electric power

12500W

Power supply

AC 380-415V 3N 50/60Hz

RRO111E

Trays capacity

11 GN1/1

Tray Runners Pitch

90 mm

Dimensions mm

800x760x1630 h

Weight

121 Kg

Electric power

15500W

Power supply

AC 380-415V 3N 50/60Hz

RRO141E

Trays capacity

14 GN1/1

Tray Runners Pitch

75 mm

Dimensions mm

800x760x1630 h

Weight

121 Kg

Electric power

15500W

Power supply

AC 380-415V 3N 50/60Hz

RRO062E

Trays capacity

6 GN2/1

Tray Runners Pitch

90 mm

Dimensions mm

860x910x935 h

Weight

88 Kg

Electric power

12500W

Power supply

AC 380-415V 3N 50/60Hz

RRO072E

Trays capacity

7 GN2/1

Tray Runners Pitch

75 mm

Dimensions mm

860x910x935 h

Weight

88 Kg

Electric power

12500W

Power supply

AC 380-415V 3N 50/60Hz

RRO082E

Trays capacity

8 GN2/1

Tray Runners Pitch

90 mm

Dimensions mm

860x910x1155 h

Weight

102 Kg

Electric power

15500W

Power supply

AC 380-415V 3N 50/60Hz

RRO102E

Trays capacity

10 GN2/1

Tray Runners Pitch

75 mm

Dimensions mm

860x910x1155 h

Weight

102 Kg

Electric power

15500W

Power supply

AC 380-415V 3N 50/60Hz

RRO112E

Trays capacity

11 GN2/1

Tray Runners Pitch

90 mm

Dimensions mm

860x910x1630 h

Weight

141 Kg

Electric power

23200W

Power supply

AC 380-415V 3N 50/60Hz

RRO142E

Trays capacity

14 GN2/1

Tray Runners Pitch

75 mm

Dimensions mm

860x910x1630 h

Weight

141 Kg

Electric power

23200W

Power supply

AC 380-415V 3N 50/60Hz

RRO051D

Trays capacity

5 GN1/1

Tray Runners Pitch

90 mm

Dimensions mm

800x760x855 h

Weight

67 Kg

Electric power

6300W

Power supply

AC 380-415V 3N 50/60Hz

RRO061D
