COMBI

Combi - Moduline

Compact and flexible combi ovens

Convection cooking with forced ventilation, steam cooking with direct injection or mixed (convection + steam) to meet all possible requirements of a professional kitchen.

Combi gathers together the best of several cooking philosophies in one solution

all within compact dimensions

Convection cooking with forced ventilation, direct injection steam cooking, and mixed cooking (convection + steam) form the foundation of the daily operations of a professional kitchen. The Moduline Combi oven offers all of these functions in a compact space, as everything is enclosed with a width of only 550 mm and a depth of 680 mm, on the smallest model (GCE060C/D/DW/T). In addition to being small, the Combi oven is complete with all the necessary functions for even the most demanding chefs. Thanks to the Moduline technology and the user-friendly interface, it is possible to cook by manually setting the parameters or by using all of the cooking programs, divided into 6 categories (T version). It is also possible to customize these programs according to your needs. Furthermore, the oven autonomously controls the cooking process and maintains optimal levels of humidity and temperature without the need for any external intervention. This approach offers advantages not only in energy savings resulting from the always controlled cooking speed but also in the quality of the results obtained and the improved ability to best preserve the organoleptic qualities of the cooked foods.

RANGE

GCE060T

6 GN 2/3 trays
Electric power 5300W
Full load capacity 10kg

GCE106T

6 GN 1/1 trays
Electric power 7950W
Full load capacity 15kg

GCE110T

10 GN 1/1 trays
Electric power 12650W
Full load capacity 24kg

GCE061T

6 GN 1/1 trays
Electric power 7950W
Full load capacity 15kg

GCE101T

10 GN 1/1 trays
Electric power 15650W
Full load capacity 24kg

Version D

GCE060D

6 GN 2/3 trays
Electric power 5300W
Full load capacity 10kg

GCE106D

6 GN 1/1 trays
Electric power 7800W
Full load capacity 15kg

GCE110D

10 GN 1/1 trays
Electric power 12500W
Full load capacity 24kg

GCE061D

6 GN 1/1 trays
Electric power 7800W
Full load capacity 15kg

GCE101D

10 GN 1/1 trays
Electric power 15500W
Full load capacity 24kg

Version DW

GCE060DW

6 GN 2/3 trays
Electric power 5450W
Full load capacity 10kg

GCE106DW

6 GN 1/1 trays
Electric power 7950W
Full load capacity 15kg

GCE110DW

10 GN 1/1 trays
Electric power 12650W
Full load capacity 24kg

GCE061DW

6 GN 1/1 trays
Electric power 7950W
Full load capacity 15kg

GCE101DW

10 GN 1/1 trays
Electric power 15650W
Full load capacity 24kg

Version C

GCE060C

6 GN 2/3 trays
Electric power 5300W
Full load capacity 10kg

GCE106C

6 GN 1/1 trays
Electric power 7800W
Full load capacity 15kg

GCE106CM

6 GN 1/1 trays
Electric power 3450W
Full load capacity 15kg

GCE110C

10 GN 1/1 trays
Electric power 12500W
Full load capacity 24kg

GCE061C

6 GN 1/1 trays
Electric power 7800W
Full load capacity 15kg

GCE101C

10 GN 1/1 trays
Electric power 15500W
Full load capacity 24kg

3 at1

MANY FUNCTIONS IN REDUCED SPACE

Combi - Moduline
  • The electronic control is extremely intuitive and easy to use, even by less experienced staff (on D and T version).
  • The USB port provides software, recipe book and HACCP data always at your fingertips (optional on D and DW version).
  • The low-emission double-glazed door reduces external overheating and heat loss.
  • Periodic and automatic rotation reversal of fan motors allows perfect uniformity of heat distribution in the cavity.
  • Tray runners are easily removable and dishwasher-safe.
  • The inner glass of the door can be opened and allows constant and accurate door cleaning.
  • Cavity insulation with highly insulating materials guarantees less heat dispersion.
  • The tight-sealed cavity with rounded corners and integrated drainage system make cleaning easy and safe.
  • The condensation drip tray is located under the door and it is connected to the oven drainage system, thus preventing dangerous water leakage and accumulation on the floor.

T

Control Panel Version

  • Temperature control from +30°C. to +280°C.
  • Time control
  • 3 cooking modes: convection, steam and mixed (convection + steam)
  • Automatic cooking programs divided into six categories
  • Possibility of managing up to ten cooking phases per programme
  • Favourite programs section
  • Cooking with core probe
  • Cooking with Delta T
  • Cavity climate humidity control with ClimaChef system
  • Customisable recipe book
  • Special modes: pasteurisation, vacuum cooking, low-temperature cooking, leavening
  • SpeedGrade for fan speed control and power reduction to 2/3
  • Special functions: MultiLevel, IdealWarm, FlashDry, ProTime, PadLock, EcoWash

Control Panel Version

T

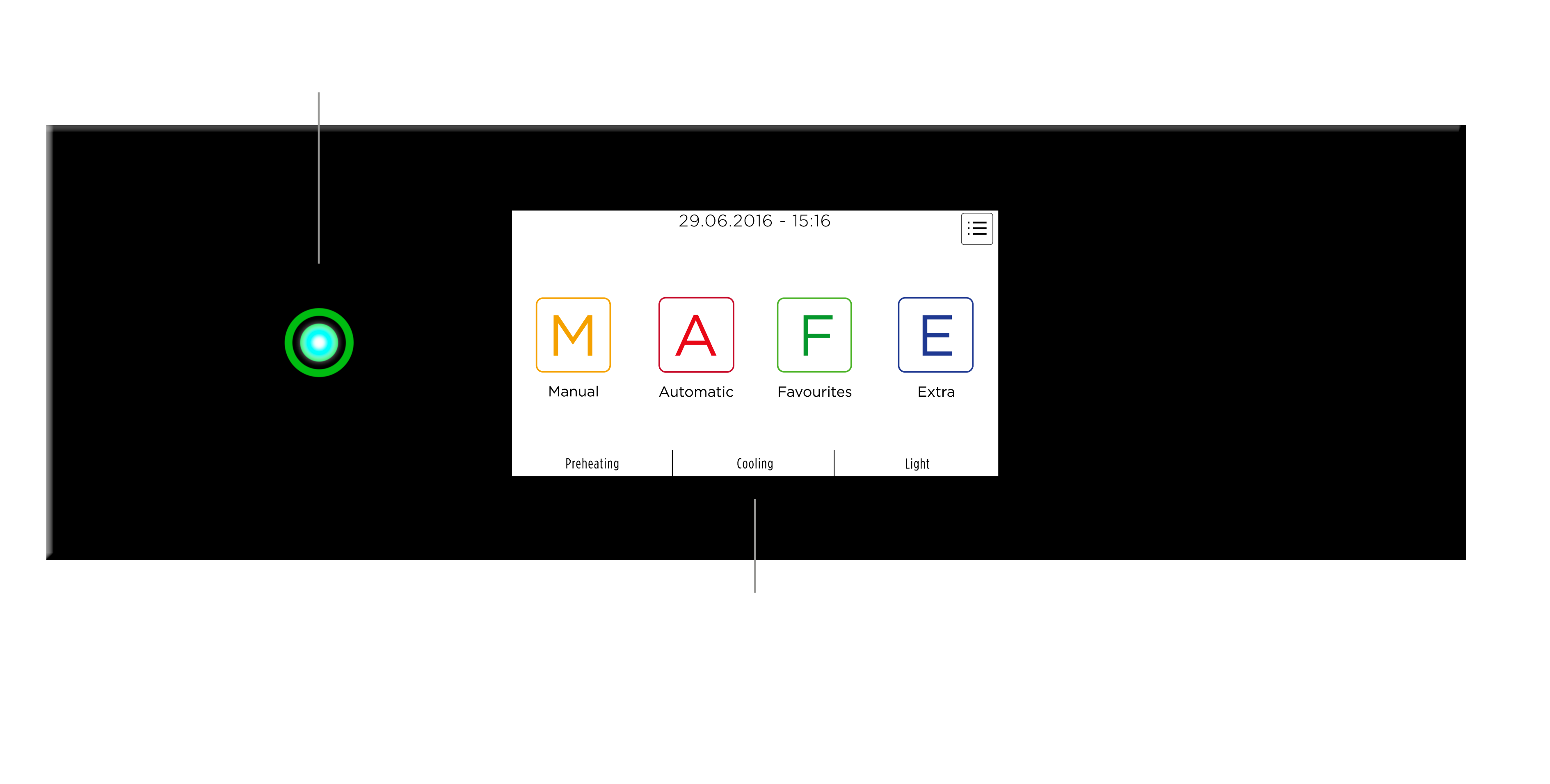

1. Status indication LED / Stand-by button

2. 7″ multitouch capacitive display with navigation:


  • Temperature control from +30°C. to +280°C.
  • Time control
  • 3 cooking modes: convection, steam and mixed (convection + steam)
  • Automatic cooking programs divided into six categories
  • Possibility of managing up to ten cooking phases per programme
  • Favourite programs section
  • Cooking with core probe
  • Cooking with Delta T
  • Cavity climate humidity control with ClimaChef system
  • Customisable recipe book
  • Special modes: pasteurisation, vacuum cooking, low-temperature cooking, leavening
  • SpeedGrade for fan speed control and power reduction to 2/3
  • Special functions: MultiLevel, IdealWarm, FlashDry, ProTime, PadLock, EcoWash

D

Control Panel Version

Control Panel Version

D

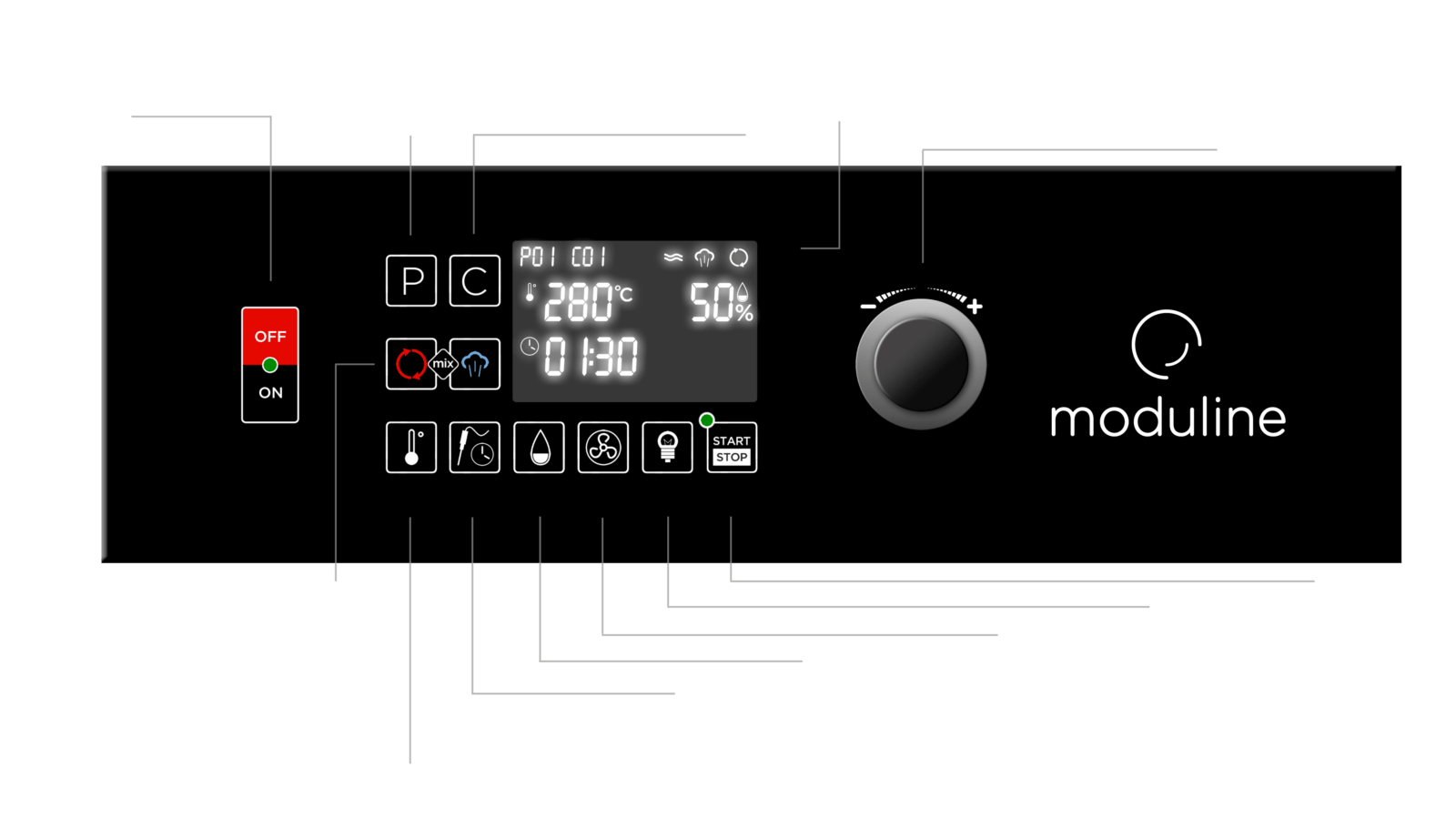

1. ON/OFF button

2. Programme selection (99 programmes)

3. Cooking step selection (4 steps per programme)

4. Digital display

5. Encoder knob to navigate between oven functions and set all cooking parameters

6. Cooking modes: convection, steam, mixed convection-steam

7. Cavity temperature control

8. Time or core probe control

9. Cavity humidity control

10. Fan speed management (optional)

11. Cavity light button

12. START/STOP button

C

Control Panel Version

Control Panel Version

C

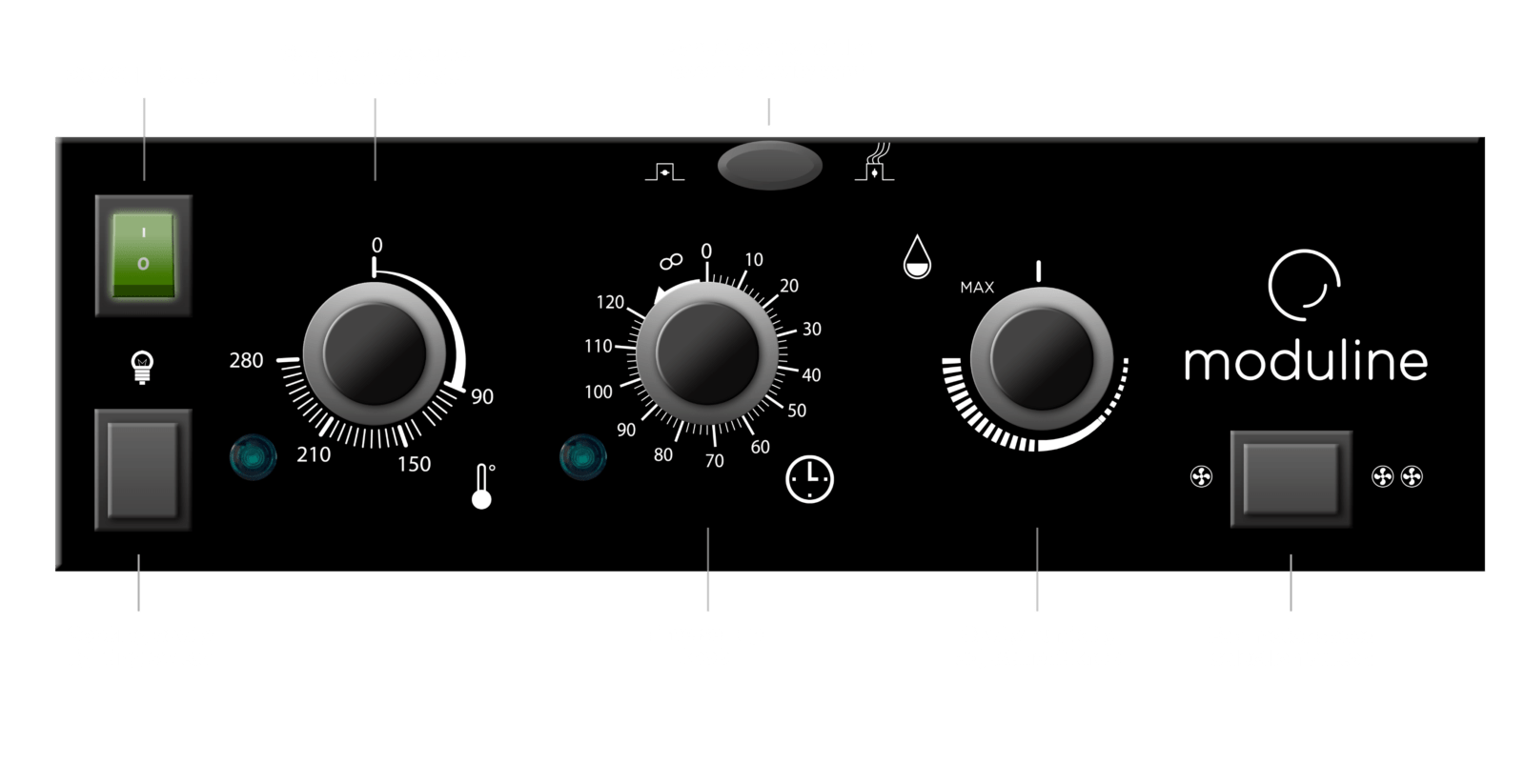

1. ON/OFF button

2. Room temperature control knob

3. Manual control of cooking cavity vent

4. Cooking cavity lighting switch

5. Time setting knob

6. Cavity humidity control knob

7. Ventilation speed selection button

FEATURES

Functioning modes

Combi caratteristiche
Combi caratteristiche

Direct steam injection mode from +30°C to +130°C.

Convection mode from +30°C to +280°C.

Mixed mode (steam + convection) from +30°C to +280°C.

Manual control of cooking time, temperature and humidity/steam parameters (C version).

Double speed of the fan in the cavity as standard option you can select pushing the mechanical button (C version).

Manual vent of cavity moisture for dry cooking (C version).

Automatic cooking programs divided into six product categories: the perfect starting point for your experience with a Combi-oven (T versions).

Manual cooking phase and recipe saving: traditional convenience at the Chef's service (D, DW and T version).

Favourite and customisable programme section: your everyday life and experience always at your fingertips (T version).

MultiLevel: Combi can handle several dishes with different cooking times, indicating every time which level is ready.

The cooking programmes can be divided into different stages (10 for the T version and 4 for the D and DW versions), thus allowing high performance in food processing (not available on C version).

Delta-T function: the possibility of adjusting the temperature difference between the oven cavity and the product core (T version only).

Consumption analysis always at hand (T version only).

The door locking system (with key and optional) prevents unintentional opening during cooking.

The Climachef automatic humidity evacuation system allows control of the correct humidity percentage in the cavity. Combined with the FlashDry function, the system releases all moisture and steam to allow quick browning or dry cooking (D, DW and T version).

Self-diagnosis system of the correct functioning of all electrical components (T version only).

Automatic telemetry data recording system of operations performed (T version only).

Automatic shutdown of the fan motors when the door is open.
Open-door cavity cooling program (D, DW, and T versions).

Quenching System: Telescopic rails allow the Combi to be installed into a cabinet for easy removal in case of an intervention (D, DW and T version and on 060 and 061 models). The Quenching System is added to condense the steam coming from the vents on the top of the oven and to convey it through the drainage (T version only).

EXTRAS

Core probe

Removable and interchangeable, it can be supplied with different diameters and measuring points; the ergonomic handle makes it easy to use and the insertion at the core food guarantees precise control (D and T version).

Air Condensation Steam Extraction Hoods

Different models of air-condensation extraction hoods are available, which can be supplied as an option, when ordering, and directly wired with the oven, or as an after-market accessory with independent wiring and switch.

Quenching System

Telescopic slides allow the Combi to be recessed into a cabinet for easy removal in the event of an intervention (D, DW and T versions and models 060 and 061). The quenching system makes it possible to completely condense all the vapours coming from the vents on the roof of the oven and channel them into the exhaust (T version only).

PadLock

The keypad lock system with password guarantees the chef maximum data protection or unintentional interruption of the cooking programme (D and T version).

ProTime

The ProTime system allows you to set the date and time when you want the oven to preheat or start a cooking programme (D and T version).

SD

Ready for memory expansion with built-in SD CARD (T version only).

GCE060T

Version

+ Ecowash

Trays capacity

6 GN2/3

Product capacity

10 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x675x822 h

Weight

65 Kg

Electric power

5300W

Power supply

AC 380-415V 3N 50/60Hz
GCE060T

GCE106T

Version

+ Ecowash

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x822 h

Weight

90 Kg

Electric power

7950W

Power supply

AC 380-415V 3N 50/60Hz
GCE106T

GCE110T

Version

+ Ecowash

Trays capacity

10 GN1/1

Product capacity

24 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x1062 h

Weight

100 Kg

Electric power

12650W

Power supply

AC 380-415V 3N 50/60Hz
GCE110T

GCE061T

Version

+ Ecowash

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x822  h

Weight

90 Kg

Electric power

7950W

Power supply

AC 380-415V 3N 50/60Hz
GCE061T

GCE101T

Version

+ Ecowash

Trays capacity

10 GN1/1

Product capacity

24 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x1062  h

Weight

100 Kg

Electric power

15650W

Power supply

AC 380-415V 3N 50/60Hz
GCE101T

GCE060D

Trays capacity

6 GN2/3

Product capacity

10 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x675x822 h

Weight

65 Kg

Electric power

5300W

Power supply

AC 380-415V 3N 50/60Hz
GCE060D

GCE106D

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x822 h

Weight

90 Kg

Electric power

7800W

Power supply

AC 380-415V 3N 50/60Hz
GCE106D

GCE110D

Trays capacity

10 GN1/1

Product capacity

24 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x1062 h

Weight

100 Kg

Electric power

12500W

Power supply

AC 380-415V 3N 50/60Hz
GCE110D

GCE061D

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x822  h

Weight

90 Kg

Electric power

7800W

Power supply

AC 380-415V 3N 50/60Hz
GCE061D

GCE101D

Trays capacity

10 GN1/1

Product capacity

24 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x1062  h

Weight

100 Kg

Electric power

15500W

Power supply

AC 380-415V 3N 50/60Hz
GCE101D

GCE060DW

Version

+ Ecowash

Trays capacity

6 GN2/3

Product capacity

10 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x675x822 h

Weight

65 Kg

Electric power

5450W

Power supply

AC 380-415V 3N 50/60Hz
GCE060D

GCE106DW

Version

+ Ecowash

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x822 h

Weight

90 Kg

Electric power

7950W

Power supply

AC 380-415V 3N 50/60Hz
GCE106D

GCE110DW

Version

+ Ecowash

Trays capacity

10 GN1/1

Product capacity

24 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x1062 h

Weight

100 Kg

Electric power

12650W

Power supply

AC 380-415V 3N 50/60Hz
GCE110D

GCE061DW

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x822  h

Weight

90 Kg

Electric power

7950W

Power supply

AC 380-415V 3N 50/60Hz
GCE061D

GCE101DW

Version

+ Ecowash

Trays capacity

10 GN1/1

Product capacity

24 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x1062  h

Weight

100 Kg

Electric power

15650W

Power supply

AC 380-415V 3N 50/60Hz
GCE101D

GCE060C

Trays capacity

6 GN2/3

Product capacity

10 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x675x822 h

Weight

65 Kg

Electric power

5300W

Power supply

AC 380-415V 3N 50/60Hz
GCE060C

GCE106C

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x822 h

Weight

90 Kg

Electric power

7800W

Power supply

AC 380-415V 3N 50/60Hz
GCE106C

GCE106CM

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x822 h

Weight

90 Kg

Electric power

3450W

Power supply

AC 220-240V 50/60Hz

GCE106CM

GCE110C

Trays capacity

10 GN1/1

Product capacity

24 Kg

Tray Runners Pitch

64 mm

Dimensions mm

550x845x1062 h

Weight

100 Kg

Electric power

12650W

Power supply

AC 380-415V 3N 50/60Hz
GCE110C

GCE061C

Trays capacity

6 GN1/1

Product capacity

15 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x822  h

Weight

90 Kg

Electric power

7800W

Power supply

AC 380-415V 3N 50/60Hz
GCE061C

GCE101C

Trays capacity

10 GN1/1

Product capacity

24 Kg

Tray Runners Pitch

64 mm

Dimensions mm

800x715x1062  h

Weight

100 Kg

Electric power

15550W

Power supply

AC 380-415V 3N 50/60Hz
GCE101C
