SMOKER
smoker - Moduline

The robust flavour of smoking,
both hot and
at room temperature.

static ovens with external smoker

A completamento della gamma Cook&Hold, Moduline presenta Smoker: una linea di forni a bassa temperatura che hanno in dotazione un affumicatore elettrico esterno e combinano i vantaggi della cottura a bassa temperatura con il gusto robusto dell’affumicatura. Per accontentare tutti i palati, Smoker può essere regolato su tre livelli: soft, medium e hard. L’affumicatura è particolarmente indicata per la cottura delle carni, ma può essere applicata anche, a temperatura ambiente, ad affettati, latticini freschi, verdure, carni crude, ecc.

By means of the Touch screen, in fact, the chef can decide to smoke without cooking, or to combine room temperature smoking with hot smoking during cooking (up to 9 steps for each cooking cycle), choosing the smoking temperature and time at his like. In addition, in order to preserve the full capacity of the equipment, and also to avoid overheating the cavity during smoking at room temperature, Moduline designed the installation of the smoker outside the cooking cavity.

ON WHEELS

CHS052E

5 GN2/1 - 10 GN1/1
Electrical power 3150W
Product capacity 46kg

CHS082E

8 GN2/1 - 16 GN1/1
Electrical power 2950W
Product capacity 55kg

SUPPORT

FAB052E

5 GN2/1 - 10 GN1/1
Electrical power 3150W
Product capacity 46kg

FAB082E

8 GN2/1 - 16 GN1/1
Electrical power 2950W
Product capacity 55kg

with Smoker

The robust flavour of low-temperature cooking

Smoker - Moduline
  • The electric smoke generator is external and can be connected to the wiring on the roof of the appliance. The smoke enters the cooking cavity via a vacuum air circuit (patented using the Venturi System). The smoke is produced by burning dry wood chips (supplied as an accessory). The smoke enters the cavity through the connecting duct to the generator and can therefore smoke the food regardless of whether it is being cooked or not.
  • The smoke generator is completely detachable for inspection and cleaning, which can be done in a dishwasher.
  • Via the Touch screen, smoking can be programmed to 3 levels: soft, medium and hard. This programming can be performed either without starting the cooking cavity heating or in combination with low-temperature cooking.
  • The Deliwarm system maintains a constant temperature in the cavity during cooking and holding phases, thanks to gentle heat without forced ventilation.
  • The electronic control is very intuitive and easy to use even by less experienced personnel (Colour Touch Display).
  • The inner glass of the door can be opened and allows constant and accurate door cleaning.
  • The door handle is ergonomic and swivel with snap closure.
  • Internal lighting of the cooking cavity. Thanks to this standard feature and the low heat-emitting glass, the user can keep all stages of cooking under control at all times.
  • The standard USB port allows you to update the oven software, upload and download recipes to and from other ovens, and extract all HACCP data saved in the memory for 30 days. The HACCP function records all parameters in the various cooking cycles.
  • The tray racks are easy to remove and wash.
  • The multi-point-reading core probe has an ergonomic handle and is therefore very durable and suitable for frequent and heavy use.
  • The absence of ventilation prevents the product from drying out without the need to add moisture in the cooking cavity, thus avoiding water consumption.
  • The moulded silicone door seal is resistant to high temperatures and easily replaceable.
  • The watertight cavity has rounded corners, which makes cleaning easy and safe.
  • Low power and perfect temperature control ensure minimal electricity consumption.
  • The perimeter bumpers are made of plastic. The trolleys are also equipped with four wheels with a diameter of 150 mm. Two of these are swivelling and also equipped with brakes to ensure full mobility (CHS). A pair of side handles for pushing and driving (CHS) completes the standard equipment.
  • The condensate drip gutter is built into the door and is connected to either the oven drain or the rear drain of the washing system (on CHS models only).

Control Panel Version

CHS-FAB

Functions

  • Operating temperature from +30°C to +160°C
  • Time control
  • Automatic cooking programs divided into six categories
  • Favourite programs section

Cooking modes

  • Possibility of managing up to 9 cooking steps per programme
  • Timed cooking
  • Cooking with core probe
  • Cooking with Delta T

Special Functions

  • Smoking (on CHS-FAB models)
  • ProTime
  • PadLock
  • CoreCheck
  • Ecowash (optional)

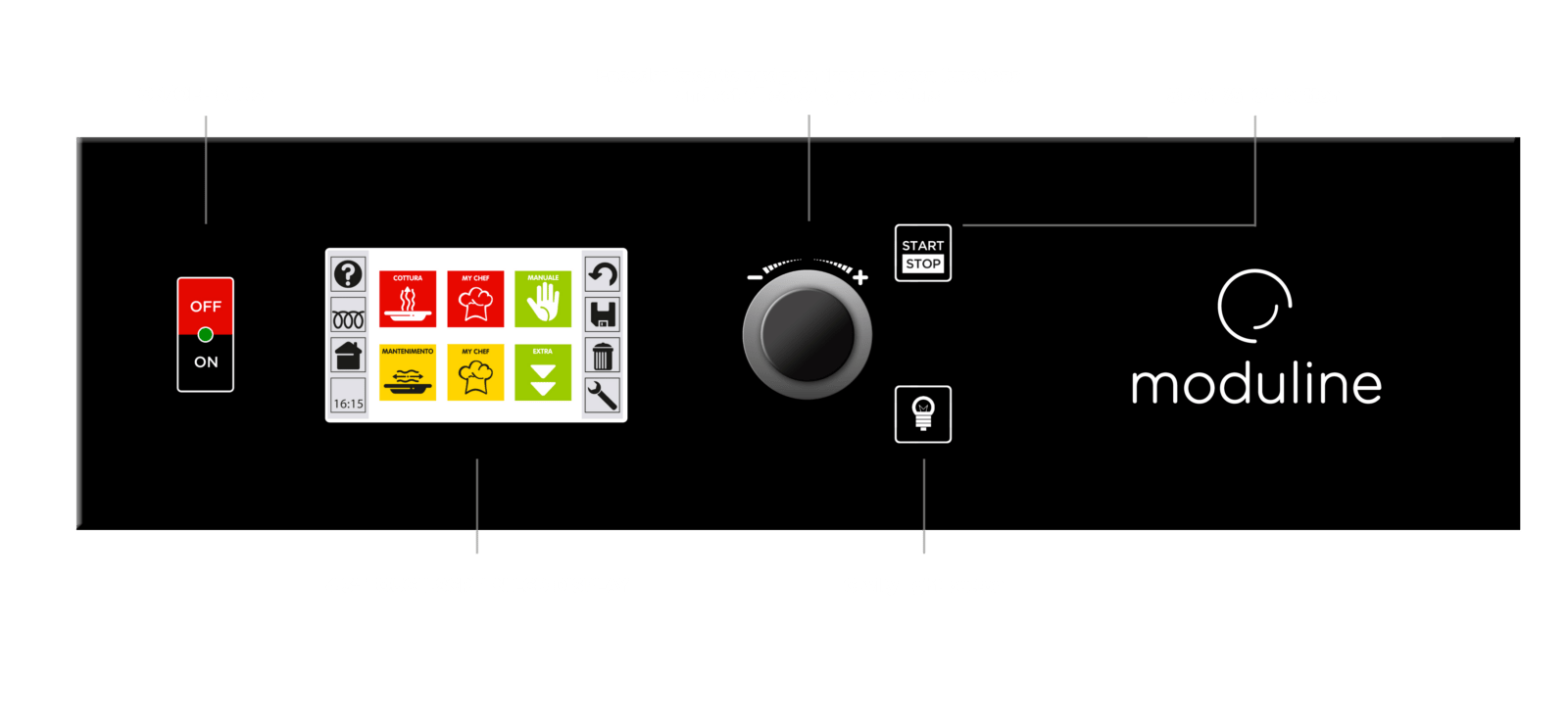

Control Panel Version

CHS-FAB

1. ON/OFF button

2. Encoder knob to navigate between oven functions and set all cooking parameters

3. START/STOP button

4. 4.3″ LCD touch-screen display

Functions

  • Operating temperature from +30°C to +160°C
  • Time control
  • Automatic cooking programs divided into six categories
  • Favourite programs section



Cooking Modes

  • Possibility of managing up to 9 cooking steps per programme
  • Timed cooking
  • Cooking with core probe
  • Cooking with Delta T



Special Functions

  • Smoking (on CHS-FAB models)
  • ProTime
  • PadLock
  • CoreCheck
  • Ecowash (optional)



5. Cavity light button

FEATURES

Functioning modes

Smoker caratteristiche
Smoker caratteristiche

The temperature can be adjusted from +30°C to +160°C.

The automatic cooking programs are divided into six product categories, providing a perfect starting point for all cooks, including the less experienced.

There are three smoking programs available: Soft, Medium, and Hard.

A manual cooking procedure is also available, with the ability to save the recipe to favorites.

La sezione dei programmi preferiti permette allo chef di riutilizzare automaticamente le ricette già impostate.

The cookbook is customisable and easily navigable.

The cooking programs, with nine different stages, offer high performance in food processing.

The Delta-T function offers the possibility of adjusting the temperature difference between the oven cavity and the core of the product as desired and allows you to enhance the tenderness of the meat and minimise its weight loss.

EXTRAS

Self-diagnosis system

This function is designed to check the proper functioning of all electrical components.

The drainage system for cooking juices

Avoids the use of drip pans inside the cavity and the subsequent handling of hot liquids (only on models without ECOWASH).

PadLock

The keypad lock function with password guarantees the chef maximum data protection and unintentional interruption of the cooking programme.

ProTime

This function allows you to set the date and time at which you want the oven to preheat or start a cooking programme.

Corecheck

The CoreCheck system verifies that the desired core temperature has been reached. Up to 30 different cooking temperatures can be recorded and saved in the HACCP data.

Ecowash

The optional Ecowash washing system automatically washes the cooking cavity with 4 different programmes. The option provides a connection to the water supply, a drain for dirty water and the elimination of the front drain for cooking juices, which must then be collected in a pan placed in the cooking cavity, on the top level of the oven.

CHS052E

Trays capacity

5 GN2/1 – 10 GN1/1

Product capacity

46 Kg

Tray Runners Pitch

75 mm

Dimensions mm

805x895x1155 h

Weight

87 Kg

Electric power

3150W

Power supply

AC 220-240V 50/60Hz

CHS052E

CHS082E

Trays capacity

8 GN2/1 – 16 GN1/1

Product capacity

55 Kg

Tray Runners Pitch

75 mm

Dimensions mm

805x895x1380 h

Weight

110 Kg

Electric power

2950W

Power supply

AC 220-240V 50/60Hz

CHS082E

FAB052E

Trays capacity

5 GN2/1 – 10 GN1/1

Product capacity

46 Kg

Tray Runners Pitch

75 mm

Dimensions mm

725x780x995 h

Weight

87 Kg

Electric power

3150W

Power supply

AC 220-240V 50/60Hz

FAB052E

FAB082E

Trays capacity

8 GN2/1 – 16 GN1/1

Product capacity

55 Kg

Tray Runners Pitch

75 mm

Dimensions mm

725x780x1220 h

Weight

110 Kg

Electric power

2950W

Power supply

AC 220-240V 50/60Hz

FAB052E
